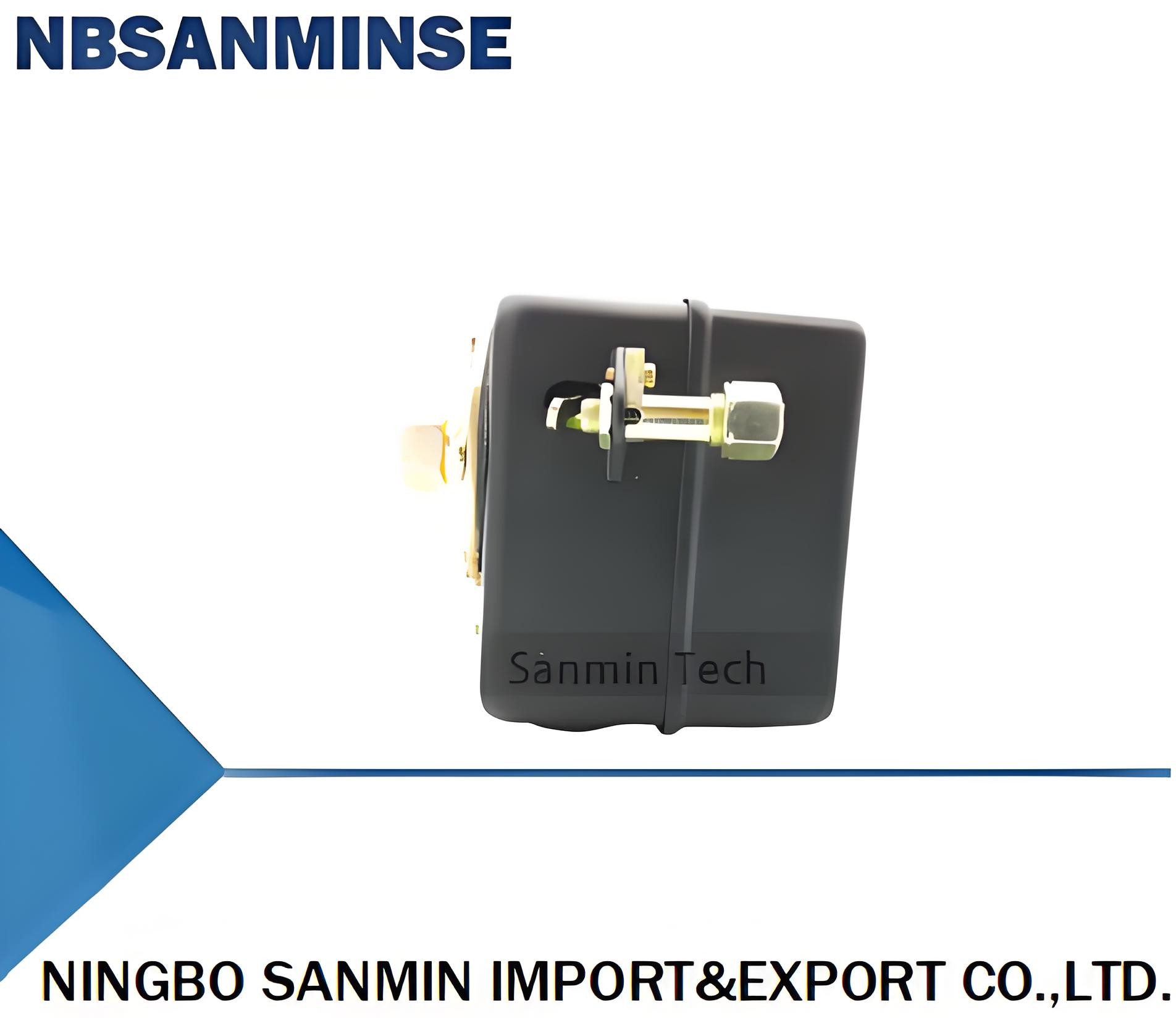

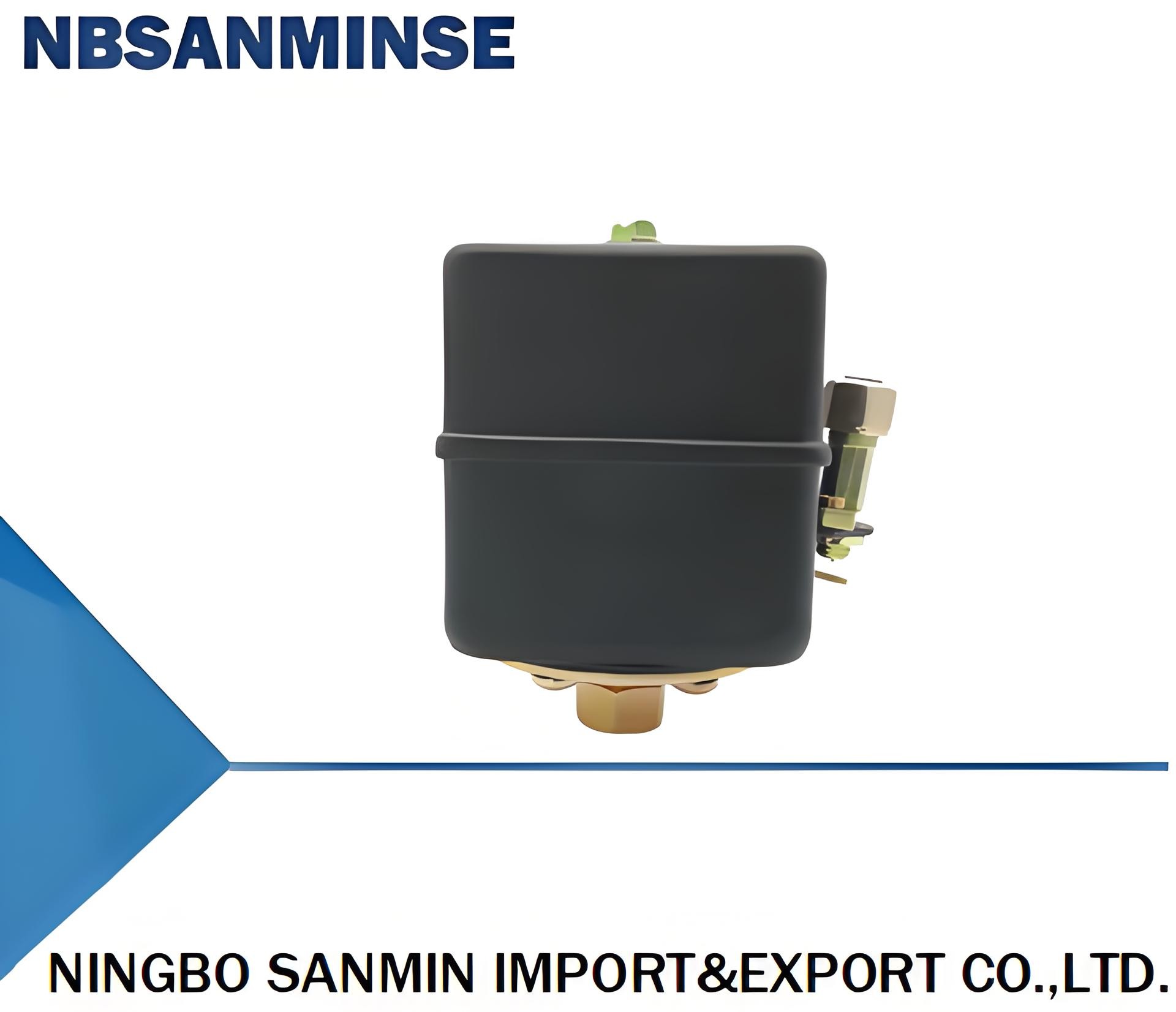

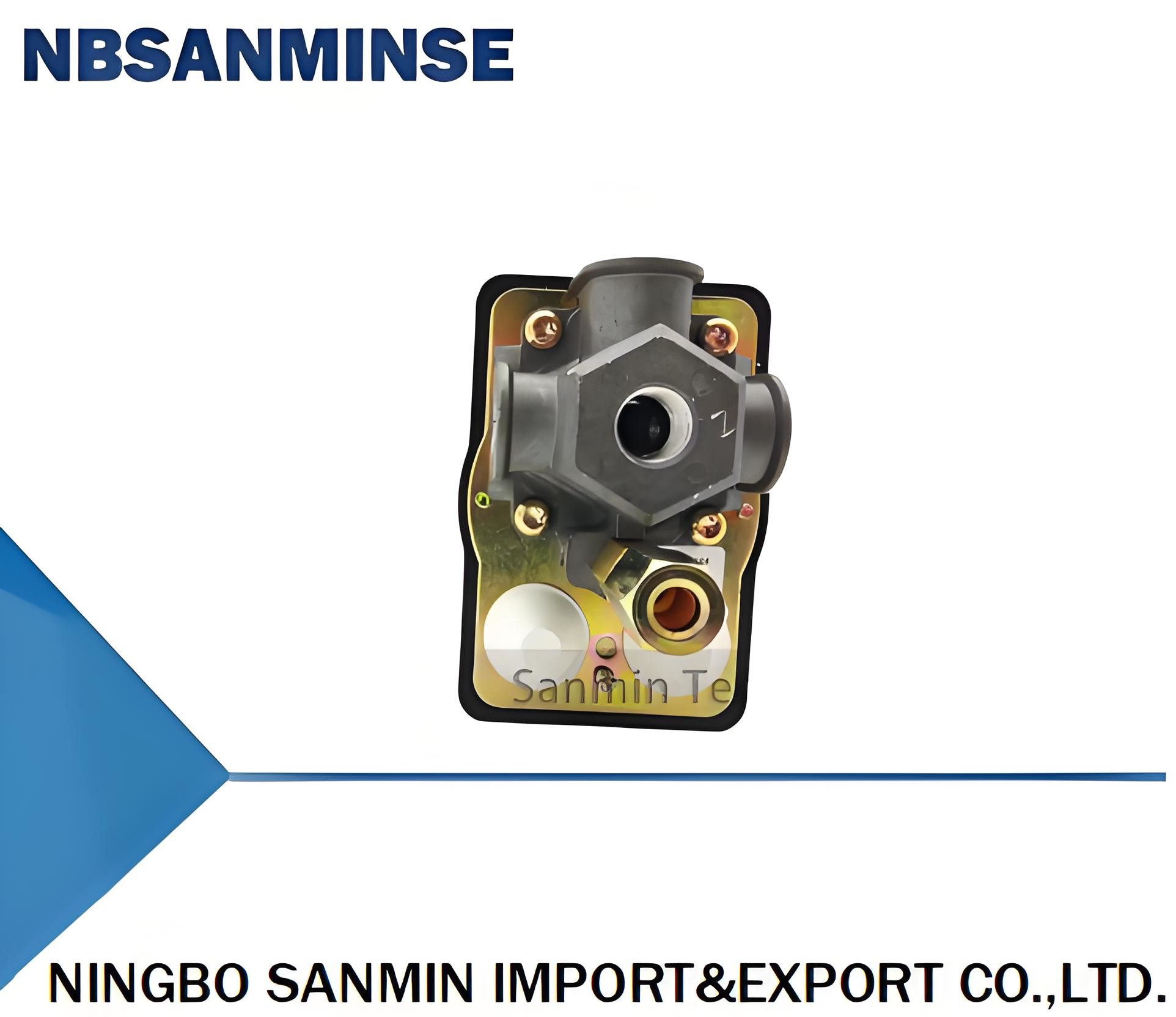

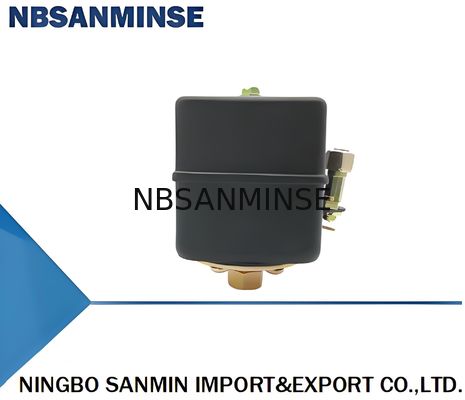

NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar
NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar
Контакт

NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar

Место происхождения: Китай Фирменное наименование: NBSANMINSE
Номер модели: SMF17

Подробная информация
Модель: SMF17 Размер: NPT 1-4 NPT 3-8 адаптер
Сертификация: ce Особенности: Прочная окрашенная сталь
Материал: Из пластика

Характер продукции

ON>OFF is NO , ON<OFF is NC

The images shown are not all the actual item and are for your reference only

NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 0NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 1NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 2NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 3NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 4NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 5NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 6


NPT1-4 = NPT 1/4"
NPT 3-8 Adapter = NPT 1/4" to 3/8" Adapter


The rugged SMF17 pressure switch is designed for the demanding requirements of lager, heavy duty commercial air compressors (up to 250 psi). The sturdy painted steel case and cover resists the harsh conditions encountered in industrial applications. This style is also available with an unloader valve to prevent the compressor from starting under load.



Sturdy Stamped Steel Case & Cover Visible Contact

No Drift Pressure Setting Captive Cover nut

Ample Wiring Room 2 Ground Screw

Easy to Adjust Automatic Unloader Valve Available

Pulsation Dampener Standard 5HP Heavy Duty Rating

250 PSI Max



MODEL
Min ON (Cut-In)PSI
Max Off
(Cut-Out) PSI
Differential
PSI
Factory Setting PSI
Electrical Rating
Pipe Fittings
Contact Arrangement
120VAC
240VAC
SMF17
40
250
25-60
145-175
24A
12A
1/4", 3/8" Male or Female NPT
NC
SMF17-S
15
60
7-15
30-40
24A
12A
1/4", 3/8" Male or Female NPT
NC

Conversion: 1Kgf/cm2 = 14.2PSI , 1Bar = 14.5PSI
Approval: UL, CSA


NBSANMINSE SMF 17 1/4 3/8 NPT Thread Air Compressor Pressure Switch 8-10bar 8-12bar 9-12.5bar 13-16bar 7
