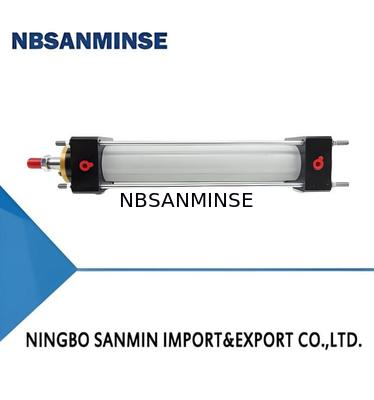

QGA QGB Big Bore Air Cylinder 32 to 400 with Cushion and CA CB TC Flange

I.Features

1.This is a traditional product of our company with a long production history. Through continuous improvement, it is reliable and durable.

2.It has a wide bore diameter range from Φ32 to Φ400, and the stroke can be selected arbitrarily within the maximum range. Cylinders with extended strokes can also be customized through negotiation.

3.For cylinders with a bore diameter of Φ32～Φ100, the front and rear end caps are made of aluminum alloy, and the cylinder barrel is a precision aluminum tube with the inner hole treated by hard anodic oxidation. For cylinders with a bore diameter of Φ125～Φ400, the front and rear end caps are made of cast iron, and the cylinder barrel is a precision seamless steel tube with the inner hole hard chrome plated.

4.There are various types of installation accessories and connectors, meeting various application requirements.

II. Graphical Symbols and Appearance

Cylinder without Cushion

Cylinder with Cushion

III.Model

IV. Main Technical Parameters

Basic Type Cylinder

QGA, QGAⅠ Series

QGA, QGBⅠSeries

2. Cylinder with Mounting Accessories

Single Trunnion Type Cylinder (Type E)

Double Trunnion Type Cylinder (ES Type)

Single Trunnion Mounted Cylinder (EZ Type)

Double Trunnion Mounted Cylinder (ESZ Type)

Rear Flange Type Cylinder (F Type)

Front Flange Type Cylinder (FQ Type)

Intermediate Hinge Shaft Type Cylinder (Type Z)

Foot Bracket Type Cylinder (Type J)

Intermediate Hinge Shaft Support Type Cylinder (Type ZZ)

3. Cylinder with Connection Accessories

Tube - equipped Connector (Type L₁)

Rod - equipped Connector (Type L₂)

Fork - equipped Connector (Type L₃)

Rod - Fork Combined Connector (Type L₄)

Fork - Rod Combined Connector (Type L₅)

Tube Connector

Rod Connector

Fork Connector
